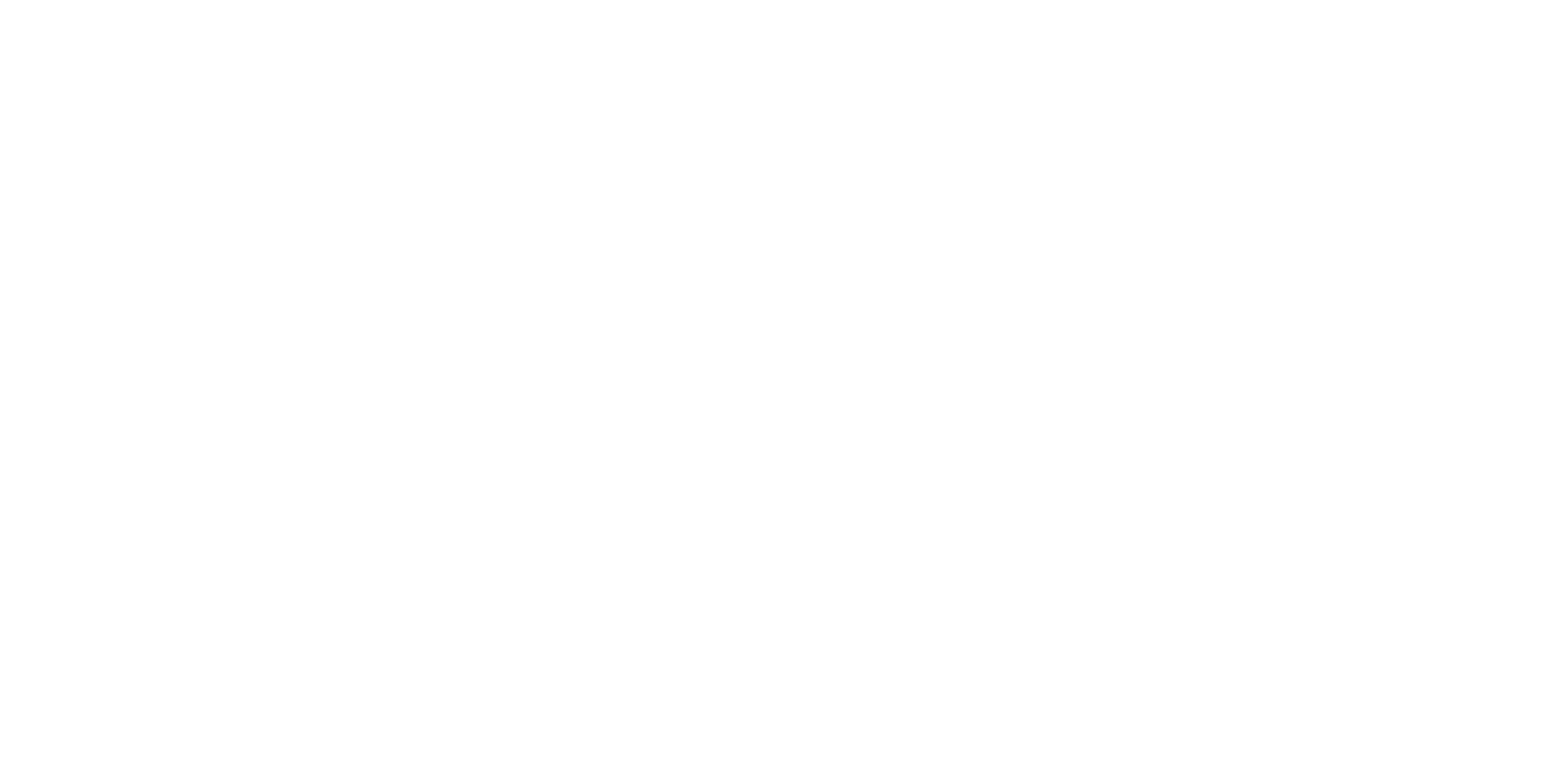

In the notebook 3-1-mlp, we made a single dense layer that contained its own activation function, so it is easy to explain backpropagation. But usually, the Dense layer and the Activation function layer are separated. In this notebook, we separate the Dense layer and the Activation function layer.

In this notebook we are not going to explain mathematics because, in essence, it is the same thing.

import torch
from torch import nn

from platform import python_version
python_version(), torch.__version__

('3.12.12', '2.9.0+cu128')

device = 'cpu'
if torch.cuda.is_available():
    device = 'cuda'
device

'cpu'

torch.set_default_dtype(torch.float64)

def add_to_class(Class):
    """Register functions as methods in created class."""
    def wrapper(obj):
        setattr(Class, obj.__name__, obj)
    return wrapper

Dataset¶

create dataset¶

\mathbf{X} \in \mathbb{R}^{m \times n} \\ \mathbf{Y} \in \mathbb{R}^{m \times n_{\text{o}}}

(1)

from sklearn.datasets import make_classification

M: int = 10_100 # number of samples
N: int = 5 # number of input features
CLASSES: int = 3 # number of output classes

X, Y = make_classification(
    n_samples=M,
    n_features=N,
    n_classes=CLASSES,
    n_informative=N - 1,
    n_redundant=0
)

print(X.shape)
print(Y.shape)

(10100, 5)
(10100,)

one hot encoding¶

Y_hat = nn.functional.one_hot(
    torch.tensor(Y, device=device).long(),
    CLASSES
).type(torch.float32)
Y_hat.shape

torch.Size([10100, 3])

split dataset into train and valid¶

X_train = torch.tensor(X[:100], device=device)
X_valid = torch.tensor(X[100:], device=device)
X_train.shape, X_valid.shape

(torch.Size([100, 5]), torch.Size([10000, 5]))

Y_train, Y_valid = Y_hat[:100], Y_hat[100:]
Y_train.shape, Y_valid.shape

(torch.Size([100, 3]), torch.Size([10000, 3]))

delete raw dataset¶

del X
del Y
del Y_hat

Model and layers¶

layers¶

class Layer:
    is_trainable: bool = False
    pass

dense or full conect layer¶

class Dense(Layer):
    def __init__(self, units: int):
        self.units = units
        self.is_trainable = True

    def set_params(self, w: torch.Tensor, b: torch.Tensor) -> None:
        self.w.copy_(w.T.detach().clone())
        self.b.copy_(b.detach().clone())

    def construct(self, x: torch.Tensor) -> torch.Tensor:
        """
        Initialize the parameters
        self.w := tensor (n_features, units).
        self.b := tensor (units).

        Args:
            x: input tensor of shape (m_samples, n_features).

        Return:
            z: out tensor of shape (m_samples, units).
        """
        n_features = x.shape[-1]
        self.w = torch.randn(n_features, self.units, device=device)
        self.b = torch.randn(self.units, device=device)
        return self.forward(x)

    def forward(self, x: torch.Tensor) -> torch.Tensor:
        """
        Compute weighted sum Z = XW+b.

        Args:
            x: input tensor of shape (m_samples, n_features).

        Return:
            z: out tensor of shape (m_samples, units).
        """
        return torch.matmul(x, self.w) + self.b

    def __forward__(self, x: torch.Tensor) -> torch.Tensor:
        """Forward propagation for training step."""
        self.input = x.clone()
        return self.forward(x)

    def backward(self, delta, lr: float) -> torch.Tensor:
        # bias der and update
        self.b -= lr * torch.sum(delta, axis=0)
        # weight derivative (update weight after compute input der)
        w_der = torch.matmul(self.input.T, delta)
        # input derivative
        delta = torch.matmul(delta, self.w.T)
        # weight update
        self.w -= lr * w_der
        return delta

activation functions¶

ReLU¶

class Relu(Layer):
    def forward(self, z: torch.Tensor) -> torch.Tensor:
        #return torch.relu(z)
        return torch.max(z, torch.zeros_like(z))

    def __forward__(self, z: torch.Tensor) -> torch.Tensor:
        self.a = self.forward(z)
        return self.a

    def construct(self, z: torch.Tensor) -> torch.Tensor:
        return self.forward(z)

    def backward(self, delta, lr: float):
        return delta * (1 * (self.a > 0))

Sigmoid¶

class Sigmoid(Layer):
    def forward(self, z: torch.Tensor) -> torch.Tensor:
        #return torch.sigmoid(z)
        return 1 / (1 + torch.exp(-z))

    def __forward__(self, z: torch.Tensor) -> torch.Tensor:
        self.a = self.forward(z)
        return self.a

    def construct(self, z: torch.Tensor) -> torch.Tensor:
        return self.forward(z)

    def backward(self, delta, lr: float):
        return delta * (self.a * (1 - self.a))

Tanh¶

class Tanh(Layer):
    def forward(self, z: torch.Tensor) -> torch.Tensor:
        #return torch.tanh(z)
        exp = torch.exp(-2 * z)
        return (1 - exp) / (1 + exp)

    def __forward__(self, z: torch.Tensor) -> torch.Tensor:
        self.a = self.forward(z)
        return self.a

    def construct(self, z: torch.Tensor) -> torch.Tensor:
        return self.forward(z)

    def backward(self, delta, lr: float):
        return delta * (1 - self.a**2)

Softmax¶

class Softmax(Layer):
    def forward(self, z: torch.Tensor) -> torch.Tensor:
        exp = torch.exp(z - torch.max(z, dim=1, keepdims=True)[0])
        return exp / exp.sum(1, keepdims=True)

    def __forward__(self, z: torch.Tensor) -> torch.Tensor:
        self.a = self.forward(z)
        return self.a

    def construct(self, z: torch.Tensor) -> torch.Tensor:
        return self.forward(z)

    def backward(self, delta, lr: float):
        return self.a * (delta - (delta * self.a).sum(axis=1, keepdims=True))

input layer¶

class InputLayer(Layer):
    def __init__(self, n_input_features: int):
        self.m = 10
        self.n = n_input_features

    def construct(self) -> torch.Tensor:
        return torch.randn(self.m, self.n, device=device)

loss function¶

class Losses:
    pass

MSE¶

class MSE(Losses):
    def loss(self, y_pred: torch.Tensor, y_true: torch.Tensor) -> float:
        return ((y_pred - y_true)**2).mean().item()

    def __call__(self, y_pred: torch.Tensor, y_true: torch.Tensor) -> float:
        return self.loss(y_pred, y_true)

    def backward(self, y_pred: torch.Tensor, y_true: torch.Tensor) -> torch.Tensor:
        return 2 * (y_pred - y_true) / y_true.numel()

scratch model¶

class Model:
    def __init__(self, layers: list[Layer], loss_f: Losses = None):
        self.layers = layers[1:] # do not save the input layer
        self.loss_f = MSE() if loss_f is None else loss_f

        # initialize all parameters
        out = layers[0].construct()
        for layer in self.layers:
            out = layer.construct(out)

    def copy_parameters(self, parameters) -> None:
        params = list(parameters())
        for layer in self.layers:
            if layer.is_trainable:
                layer.set_params(params.pop(0), params.pop(0))

    def predict(self, x: torch.Tensor) -> torch.Tensor:
        """
        Forward propagation.

        Args:
            x: tensor of shape (m_samples, n_input_features).

        Return:
            y_pred: tensor of shape (m_samples, n_out_features).
        """
        out = x
        for layer in self.layers:
            out = layer.forward(out)
        return out

    def __forward__(self, x: torch.Tensor) -> torch.Tensor:
        out = x
        for layer in self.layers:
            out = layer.__forward__(out)
        return out

    def evaluate(self, x: torch.Tensor, y: torch.Tensor) -> float:
        """
        Evaluate the model between input x and target y.

        Args:
            x: tensor (m_samples, n_input_features).
            y: target tensor (m_samples, n_out_features).

        Return:
            loss: error between y_pred and target y.
        """
        y_pred = self.predict(x)
        return self.loss_f(y_pred, y)

    def update(self, y_pred: torch.Tensor, y_true: torch.Tensor, lr: float) -> None:
        delta = self.loss_f.backward(y_pred, y_true)
        for layer in reversed(self.layers):
            delta = layer.backward(delta, lr)

    def fit(self, x_train: torch.Tensor, y_train: torch.Tensor,
        epochs: int, lr: float, batch_size: int,
        x_valid: torch.Tensor, y_valid: torch.Tensor):

        for epoch in range(epochs):
            loss_t = [] # train loss
            for batch in range(0, len(y_train), batch_size):
                end_batch = batch + batch_size

                y_pred = self.__forward__(x_train[batch:end_batch])
                loss_t.append(self.loss_f(y_pred, y_train[batch:end_batch]))

                self.update(y_pred, y_train[batch:end_batch], lr)

            loss_t = sum(loss_t) / len(loss_t)
            loss_v = self.evaluate(x_valid, y_valid) # valid loss
            print('Epoch: {} - L: {:.4f} - L_v {:.4f}'.format(epoch, loss_t, loss_v))

Torch sequential¶

class TorchSequential(nn.Module):
    def __init__(self, layers: list[nn.Module], loss_fn=None):
        super(TorchSequential, self).__init__()
        self.layers = nn.ModuleList(layers)
        for layer in self.layers:
            layer.to(device)
        self.loss_fn = loss_fn if loss_fn is not None else nn.MSELoss()
        self.eval()

    def forward(self, x):
        out = x.clone()
        for l in self.layers:
            out = l(out)
        return out

    def evaluate(self, x, y):
        self.eval()
        with torch.no_grad():
            y_pred = self(x)
            return self.loss_fn(y_pred, y).item()

    def fit(self, x: torch.Tensor, y: torch.Tensor,
            epochs: int, lr: float, batch_size: int,
            x_valid: torch.Tensor, y_valid: torch.Tensor):
        optimizer = torch.optim.SGD(self.parameters(), lr=lr, momentum=0.0)
        for epoch in range(epochs):
            loss_t = []
            for batch in range(0, len(y), batch_size):
                end_batch = batch + batch_size
                optimizer.zero_grad()

                y_pred = self(x[batch:end_batch])
                loss = self.loss_fn(y_pred, y[batch:end_batch])
                loss_t.append(loss.item())

                loss.backward()
                optimizer.step()
            loss_t = sum(loss_t) / len(loss_t)
            loss_v = self.evaluate(x_valid, y_valid)
            print('Epoch: {} - L: {:.4f} - L_v {:.4f}'.format(epoch, loss_t, loss_v))

torch_model = TorchSequential([
    nn.Linear(N, 32), nn.Tanh(),
    nn.Linear(32, 32), nn.Sigmoid(),
    nn.Linear(32, 32), nn.ReLU(),
    nn.Linear(32, CLASSES), nn.Softmax(dim=1)
])

Scratch vs Sequential¶

scratch model¶

model = Model([
    InputLayer(N),
    Dense(32), Tanh(),
    Dense(32), Sigmoid(),
    Dense(32), Relu(),
    Dense(CLASSES), Softmax()
])

evals¶

import MAPE modified¶

# This cell imports torch_mape
# if you are running this notebook locally
# or from Google Colab.

import os
import sys

module_path = os.path.abspath(os.path.join('..'))
if module_path not in sys.path:
    sys.path.append(module_path)

try:
    from tools.torch_metrics import torch_mape as mape
    print('mape imported locally.')
except ModuleNotFoundError:
    import subprocess

    repo_url = 'https://raw.githubusercontent.com/PilotLeoYan/inside-deep-learning/main/content/tools/torch_metrics.py'
    local_file = 'torch_metrics.py'

    subprocess.run(['wget', repo_url, '-O', local_file], check=True)
    try:
        from torch_metrics import torch_mape as mape # type: ignore
        print('mape imported from GitHub.')
    except Exception as e:
        print(e)

mape imported locally.

predict¶

mape(
    model.predict(X_valid),
    torch_model(X_valid)
)

1.4756880171334361

copy parameters¶

model.copy_parameters(torch_model.parameters)

predict after copy parameters¶

mape(
    model.predict(X_valid),
    torch_model(X_valid)
)

4.190360440933816e-17

loss¶

mape(
    model.evaluate(X_valid, Y_valid),
    torch_model.evaluate(X_valid, Y_valid)
)

0.0

train¶

LR: float = 0.08
EPOCHS: int = 32
BATCH_SIZE: int = len(Y_train) // 3

torch_model.fit(
    X_train, Y_train.double(),
    EPOCHS, LR, BATCH_SIZE,
    X_valid, Y_valid.double()
)

Epoch: 0 - L: 0.2201 - L_v 0.2245
Epoch: 1 - L: 0.2176 - L_v 0.2247
Epoch: 2 - L: 0.2155 - L_v 0.2251
Epoch: 3 - L: 0.2137 - L_v 0.2256
Epoch: 4 - L: 0.2122 - L_v 0.2262

Epoch: 5 - L: 0.2108 - L_v 0.2269
Epoch: 6 - L: 0.2097 - L_v 0.2276
Epoch: 7 - L: 0.2087 - L_v 0.2284
Epoch: 8 - L: 0.2078 - L_v 0.2292
Epoch: 9 - L: 0.2071 - L_v 0.2300
Epoch: 10 - L: 0.2065 - L_v 0.2307

Epoch: 11 - L: 0.2060 - L_v 0.2314
Epoch: 12 - L: 0.2056 - L_v 0.2321
Epoch: 13 - L: 0.2053 - L_v 0.2328
Epoch: 14 - L: 0.2050 - L_v 0.2333
Epoch: 15 - L: 0.2047 - L_v 0.2338
Epoch: 16 - L: 0.2044 - L_v 0.2343
Epoch: 17 - L: 0.2042 - L_v 0.2346
Epoch: 18 - L: 0.2040 - L_v 0.2350

Epoch: 19 - L: 0.2038 - L_v 0.2353
Epoch: 20 - L: 0.2037 - L_v 0.2355
Epoch: 21 - L: 0.2034 - L_v 0.2357
Epoch: 22 - L: 0.2033 - L_v 0.2360
Epoch: 23 - L: 0.2031 - L_v 0.2360

Epoch: 24 - L: 0.2029 - L_v 0.2362
Epoch: 25 - L: 0.2028 - L_v 0.2363
Epoch: 26 - L: 0.2026 - L_v 0.2364
Epoch: 27 - L: 0.2025 - L_v 0.2365

Epoch: 28 - L: 0.2023 - L_v 0.2365
Epoch: 29 - L: 0.2021 - L_v 0.2365

Epoch: 30 - L: 0.2020 - L_v 0.2365
Epoch: 31 - L: 0.2017 - L_v 0.2364

model.fit(
    X_train, Y_train,
    EPOCHS, LR, BATCH_SIZE,
    X_valid, Y_valid
)

Epoch: 0 - L: 0.2201 - L_v 0.2245
Epoch: 1 - L: 0.2176 - L_v 0.2247
Epoch: 2 - L: 0.2155 - L_v 0.2251

Epoch: 3 - L: 0.2137 - L_v 0.2256

Epoch: 4 - L: 0.2122 - L_v 0.2262
Epoch: 5 - L: 0.2108 - L_v 0.2269

Epoch: 6 - L: 0.2097 - L_v 0.2276
Epoch: 7 - L: 0.2087 - L_v 0.2284
Epoch: 8 - L: 0.2078 - L_v 0.2292

Epoch: 9 - L: 0.2071 - L_v 0.2300
Epoch: 10 - L: 0.2065 - L_v 0.2307
Epoch: 11 - L: 0.2060 - L_v 0.2314

Epoch: 12 - L: 0.2056 - L_v 0.2321
Epoch: 13 - L: 0.2053 - L_v 0.2328

Epoch: 14 - L: 0.2050 - L_v 0.2333
Epoch: 15 - L: 0.2047 - L_v 0.2338
Epoch: 16 - L: 0.2044 - L_v 0.2343
Epoch: 17 - L: 0.2042 - L_v 0.2346
Epoch: 18 - L: 0.2040 - L_v 0.2350
Epoch: 19 - L: 0.2038 - L_v 0.2353

Epoch: 20 - L: 0.2037 - L_v 0.2355
Epoch: 21 - L: 0.2034 - L_v 0.2357
Epoch: 22 - L: 0.2033 - L_v 0.2360
Epoch: 23 - L: 0.2031 - L_v 0.2360
Epoch: 24 - L: 0.2029 - L_v 0.2362
Epoch: 25 - L: 0.2028 - L_v 0.2363
Epoch: 26 - L: 0.2026 - L_v 0.2364
Epoch: 27 - L: 0.2025 - L_v 0.2365
Epoch: 28 - L: 0.2023 - L_v 0.2365

Epoch: 29 - L: 0.2021 - L_v 0.2365
Epoch: 30 - L: 0.2020 - L_v 0.2365
Epoch: 31 - L: 0.2017 - L_v 0.2364

predict after train¶

mape(
    model.predict(X_valid),
    torch_model(X_valid)
)

7.758922354826794e-17

bias¶

for k in range(len(model.layers)):
    if not model.layers[k].is_trainable:
        continue
    print(f'layer #{k}')
    print(mape(model.layers[k].b, torch_model.layers[k].bias))

layer #0
1.3420567472509363e-17
layer #2
8.871662382257171e-17
layer #4
5.842473591662927e-17
layer #6
5.498377153997065e-16

weight¶

for k in range(len(model.layers)):
    if not model.layers[k].is_trainable:
        continue
    print(f'layer #{k}')
    print(mape(model.layers[k].w, torch_model.layers[k].weight.T))

layer #0
2.893353699948033e-17
layer #2
4.1214576434160155e-17
layer #4
1.328936881890499e-16
layer #6
4.4161359237054934e-16
